Nabi ESA Antenna
Nabi ESA Antenna

Nabi ESA Antenna

Versatile Mobility for Any Mission

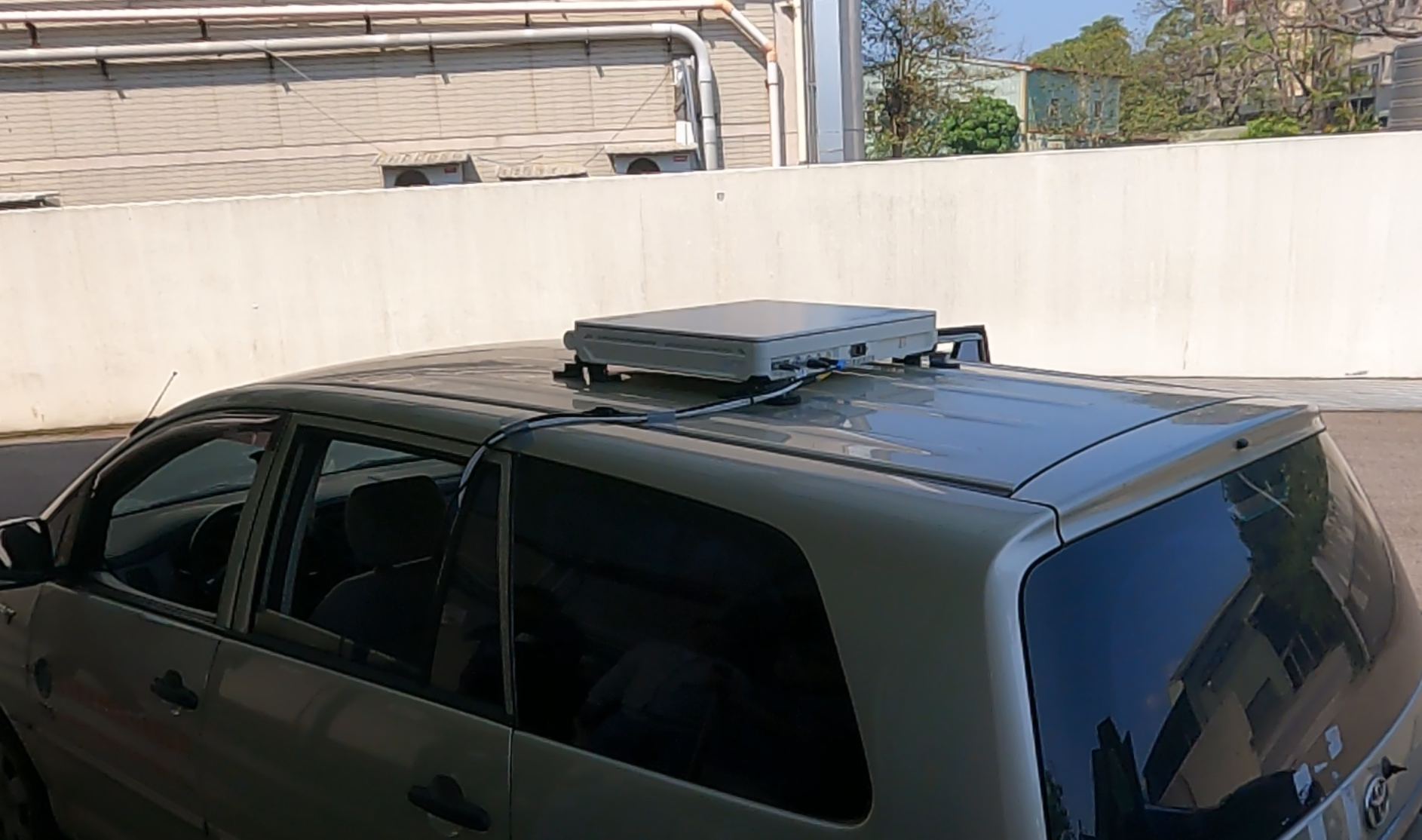

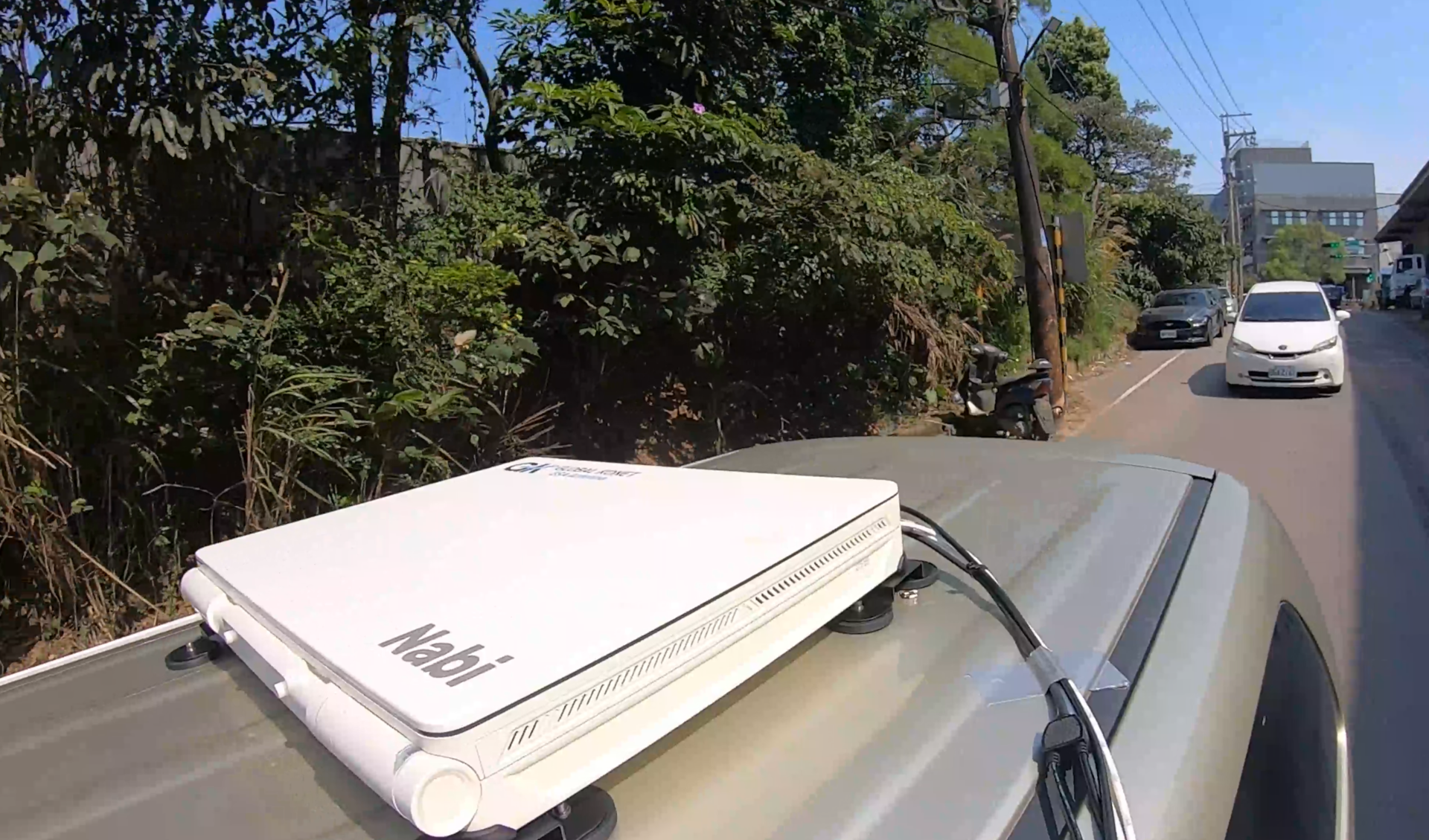

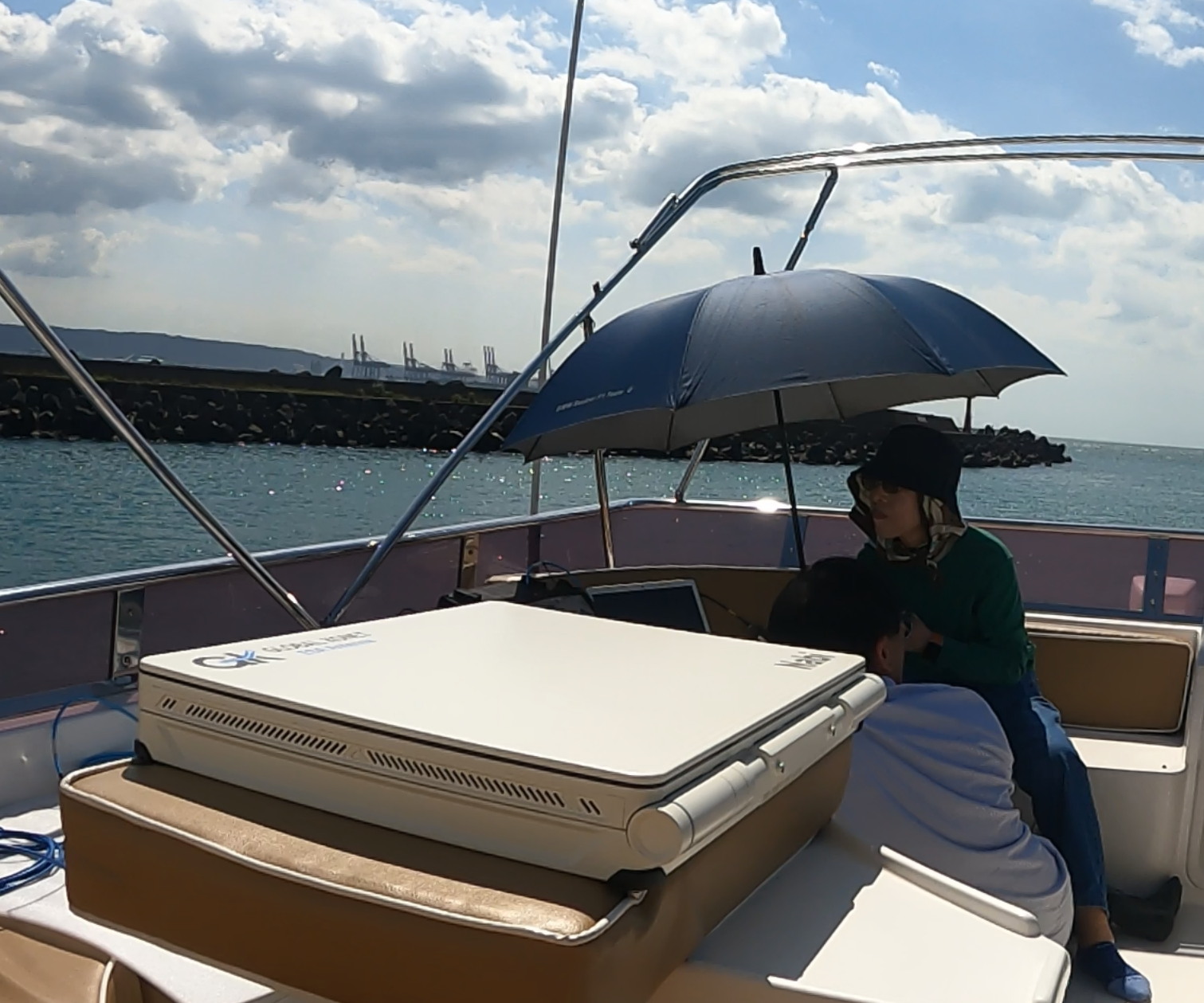

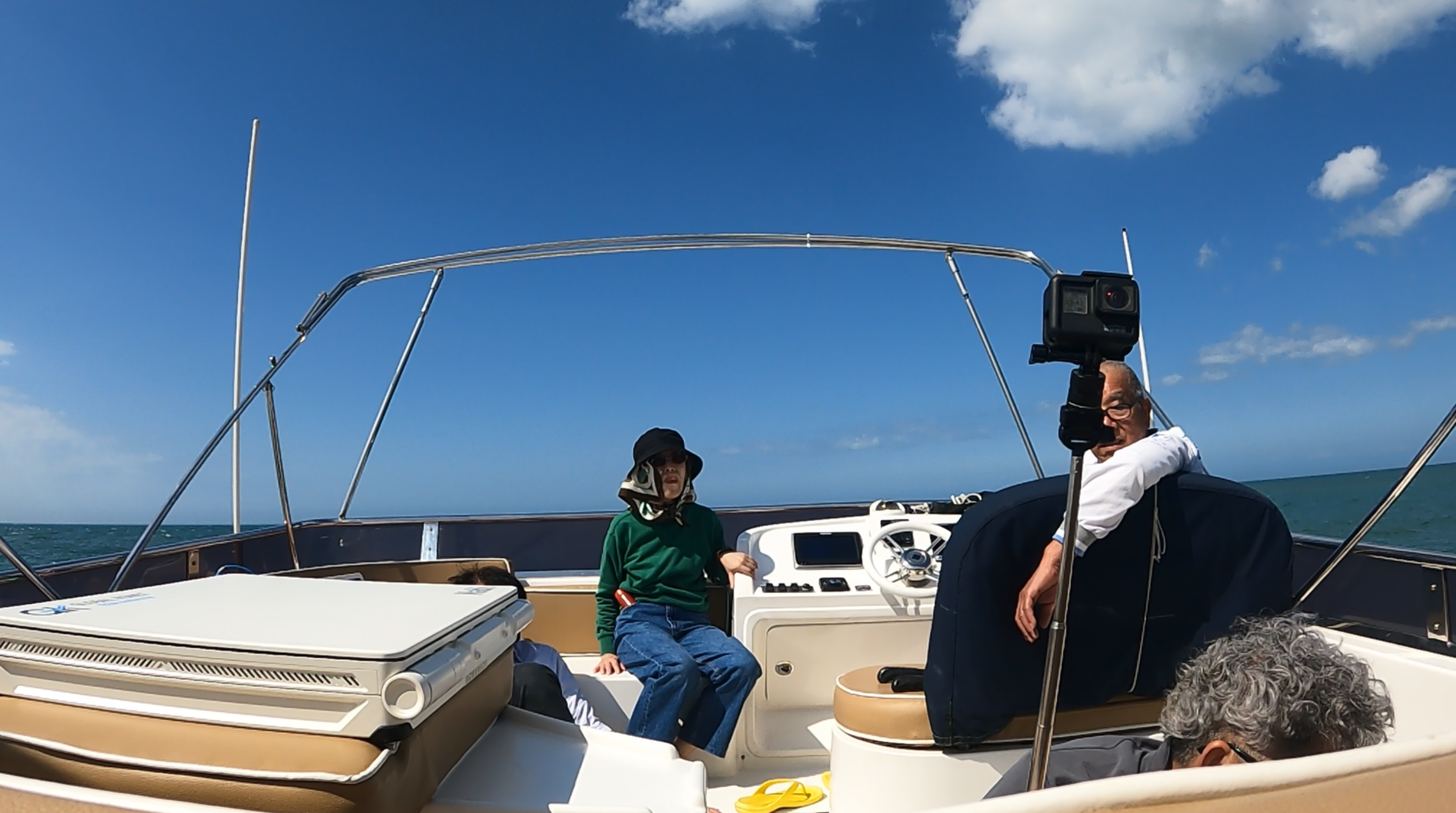

Fast installation on vehicles and vessels for seamless on-the-move operations. Can be carried as a Manpack to deliver connectivity in mountains, deserts, and remote terrain. A single portable terminal providing reliable satellite communication anywhere.


One BOX Terminal Solution

A modem board built-in and IMU, GPS can be integrated the antenna. The modem communicate through OpenAMIP, Fully automated service operation.

Military Products

This equipment is certified to MIL-STD-810G and carries an IP66 waterproof rating. Its operating temperature range is -40 to +60 °C, but prolonged exposure to high heat may cause battery degradation.

Battery built-in

Battery pack is Cylindrical Li-ion Battery and Nominal Capacity 20Ah, Nominal Voltage 25.2V. It can operate on AC power when the battery is not available, and the battery pack can be easily replaced.

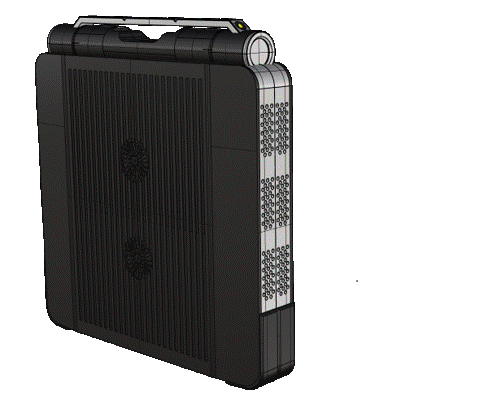

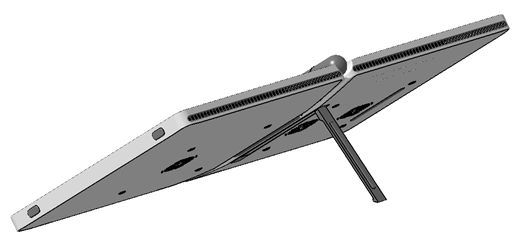

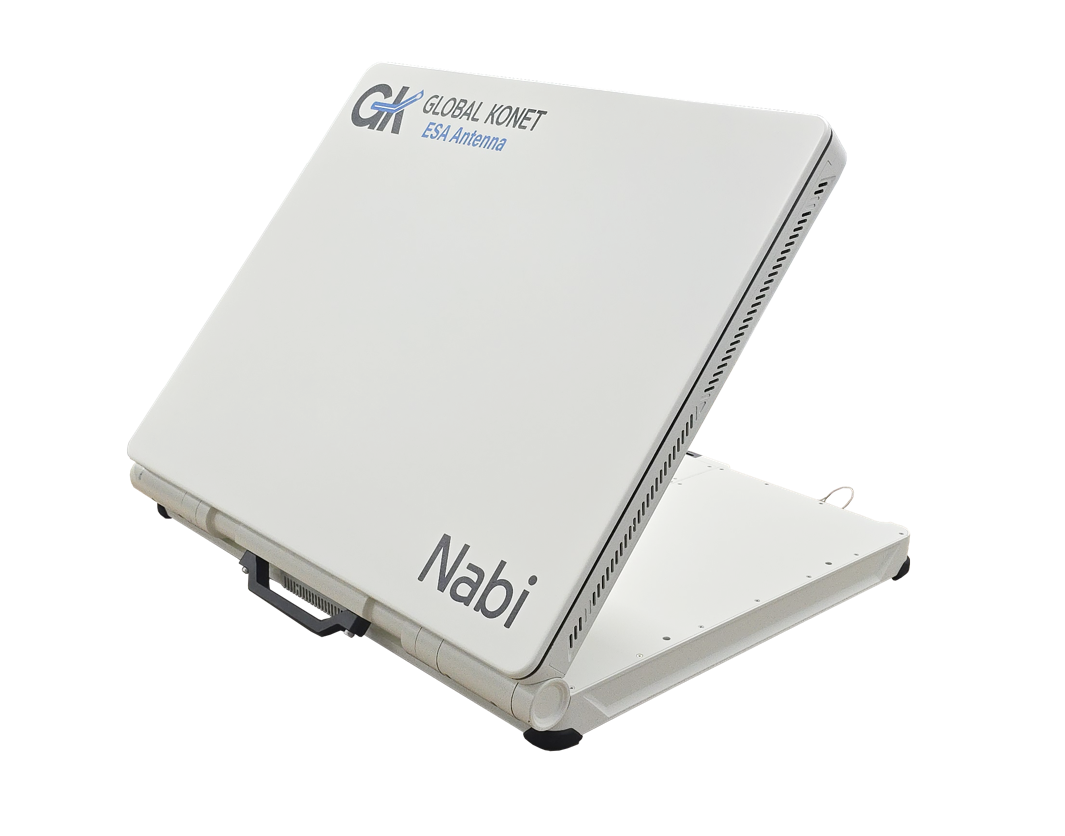

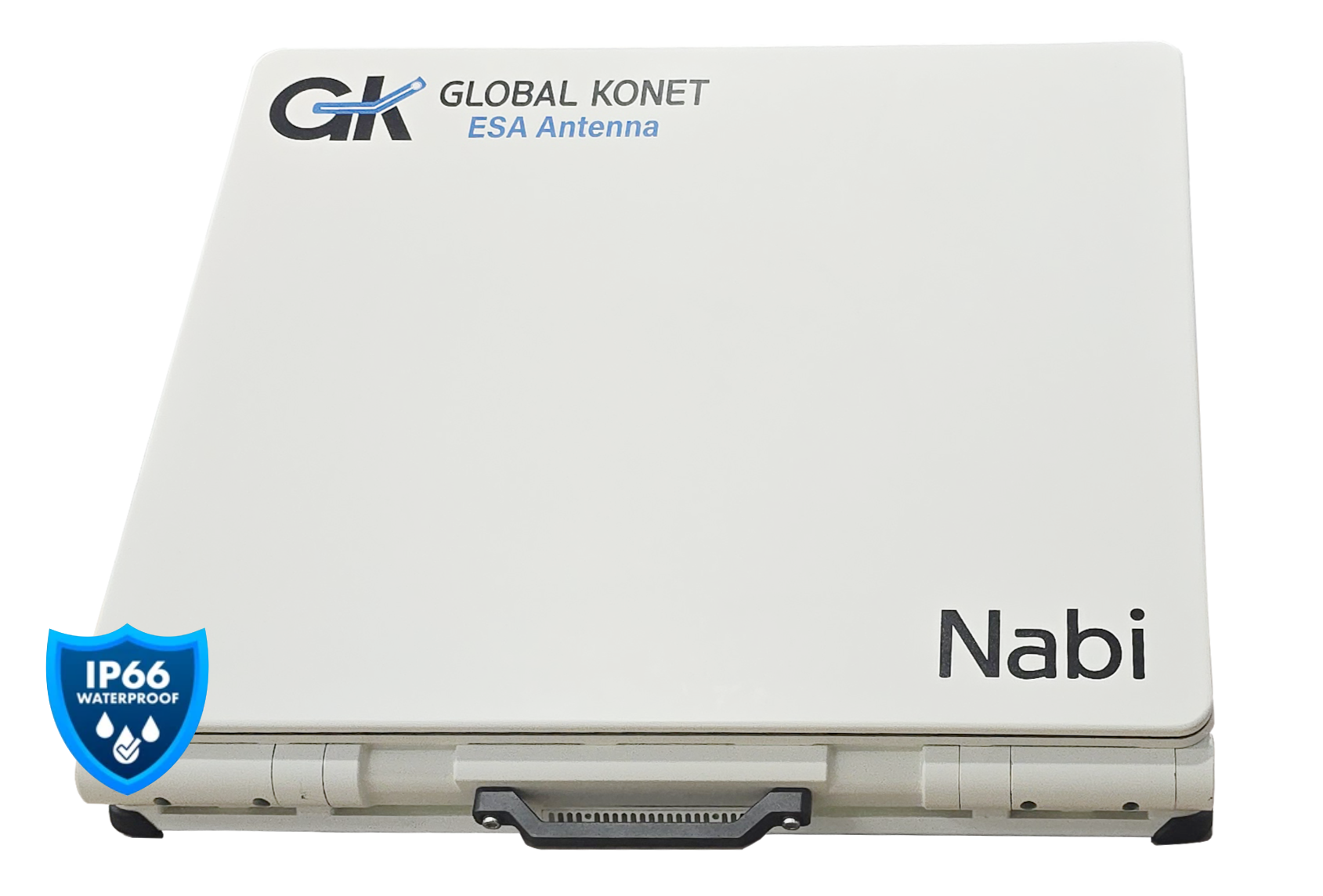

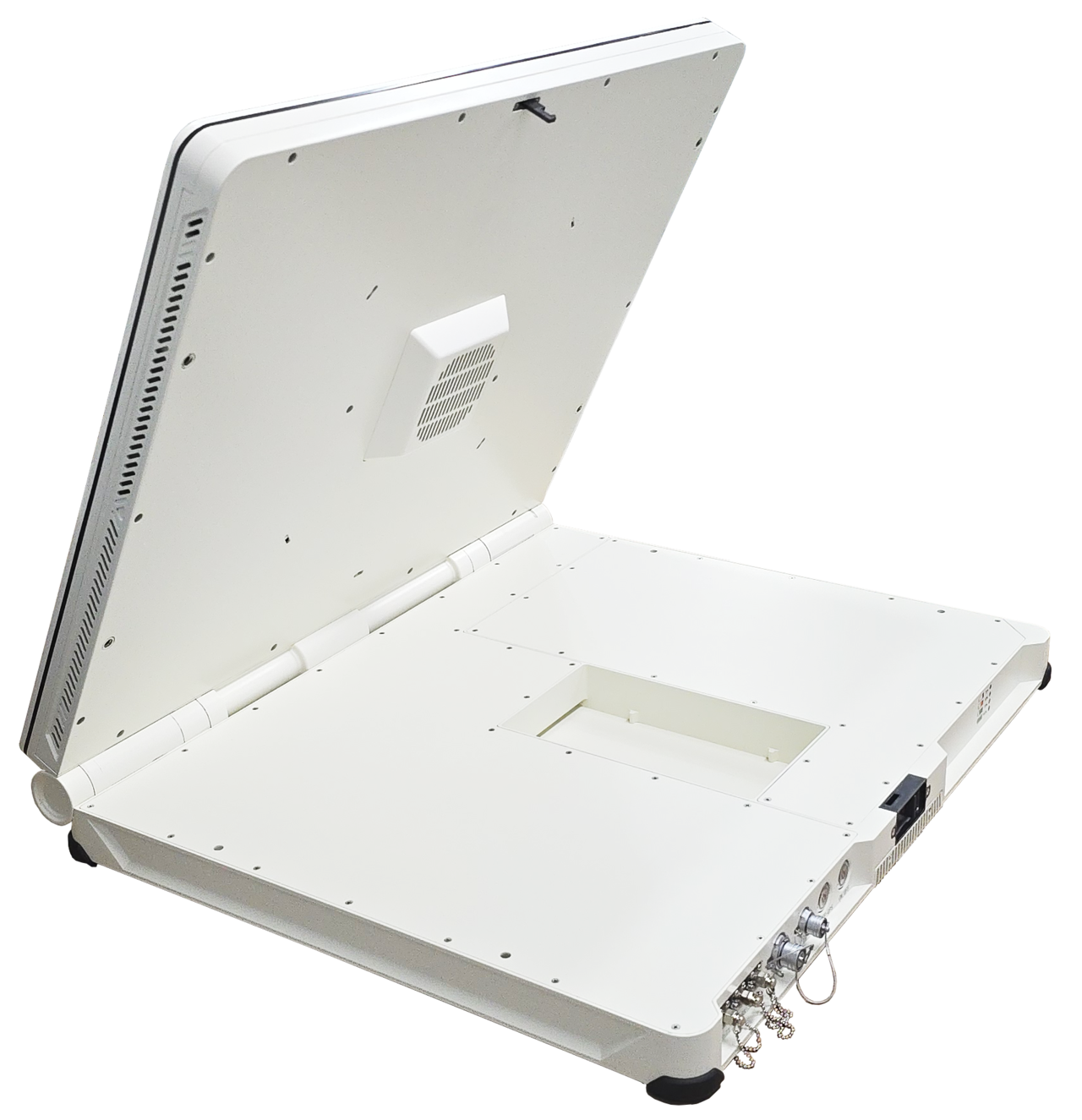

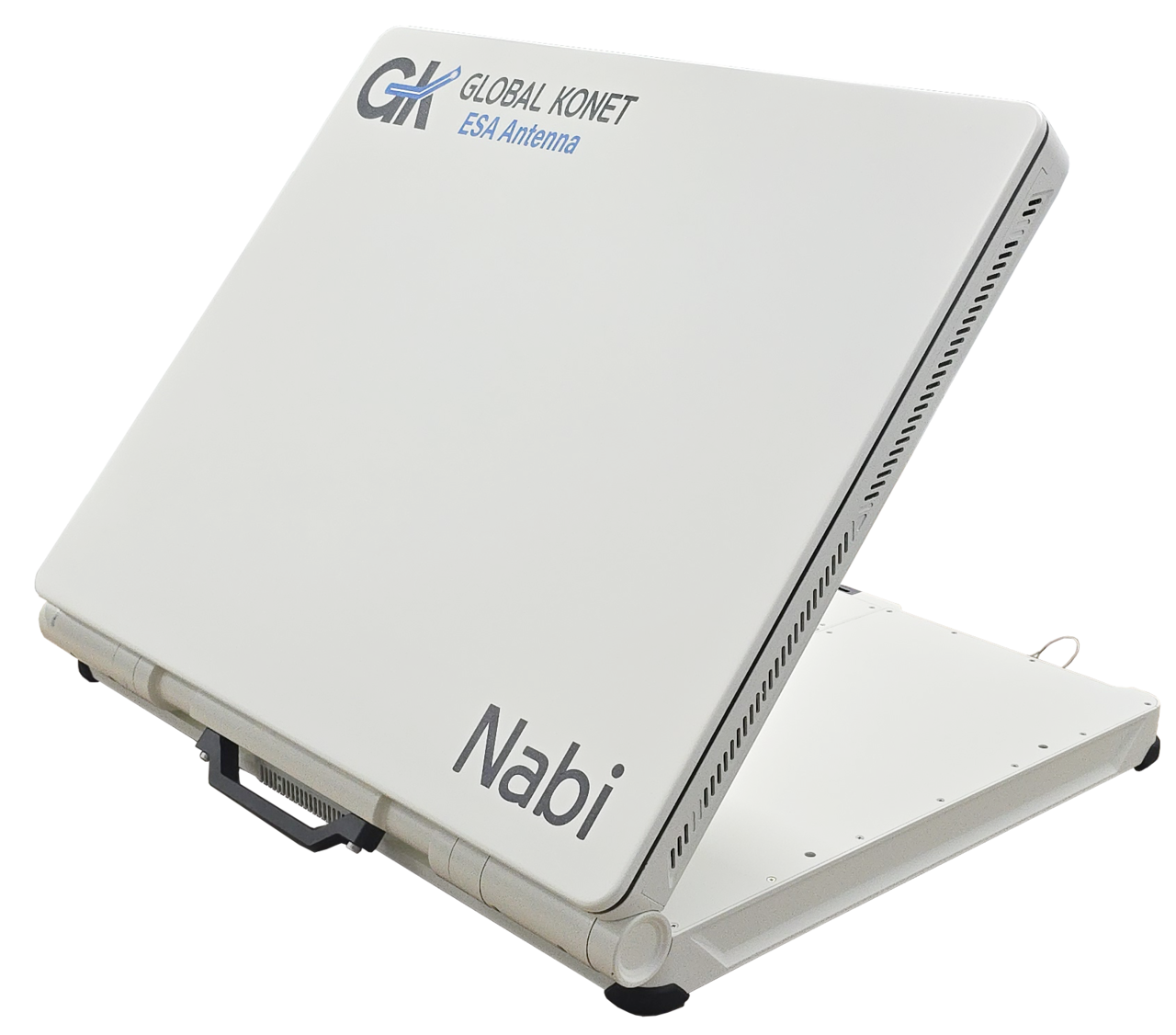

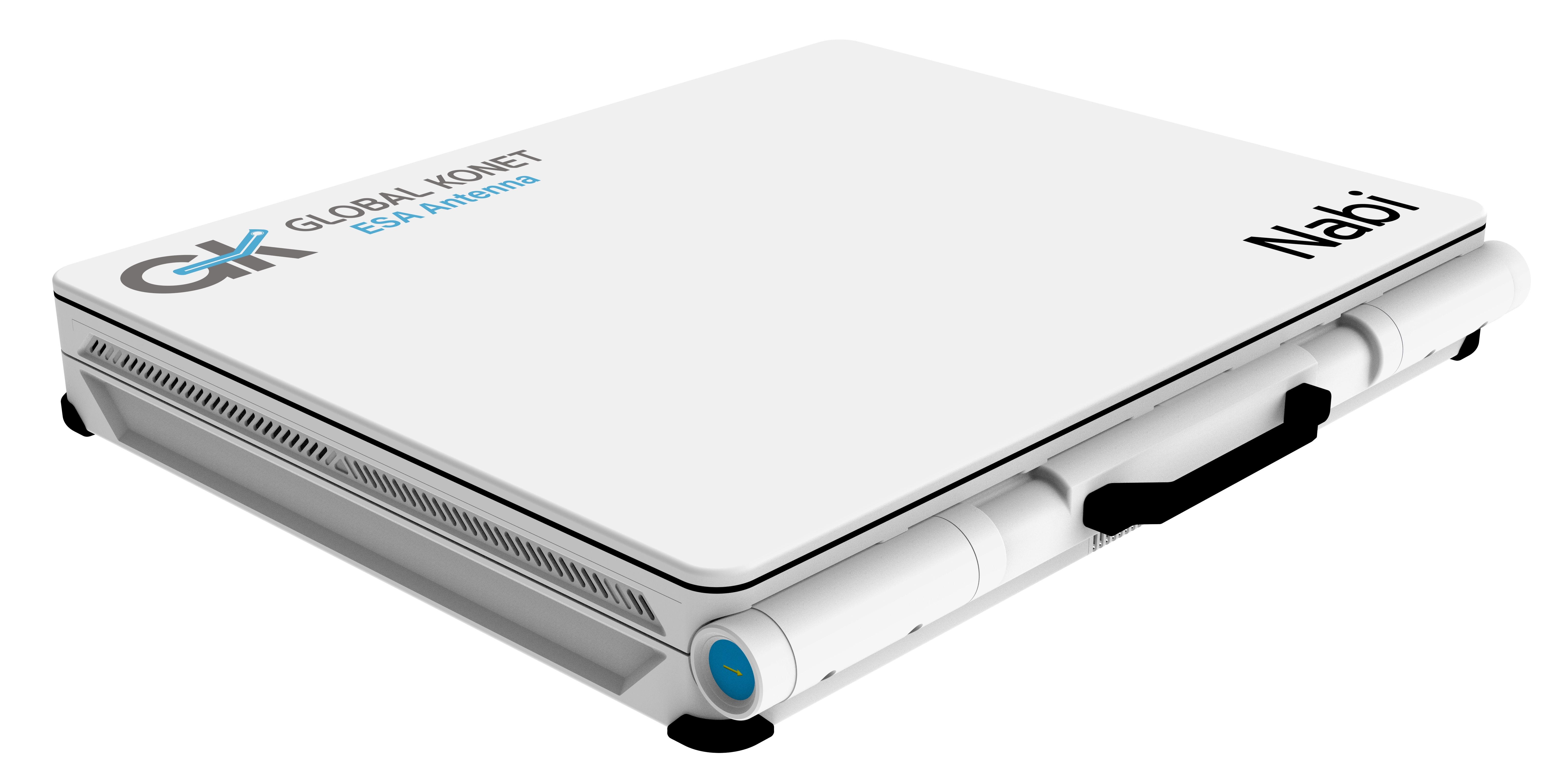

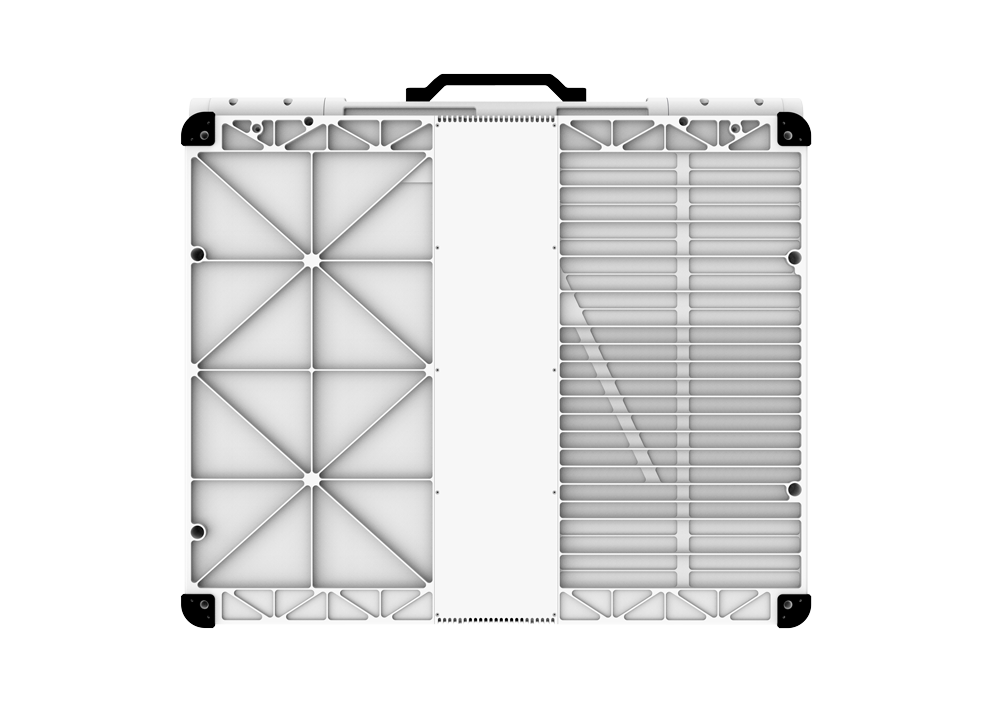

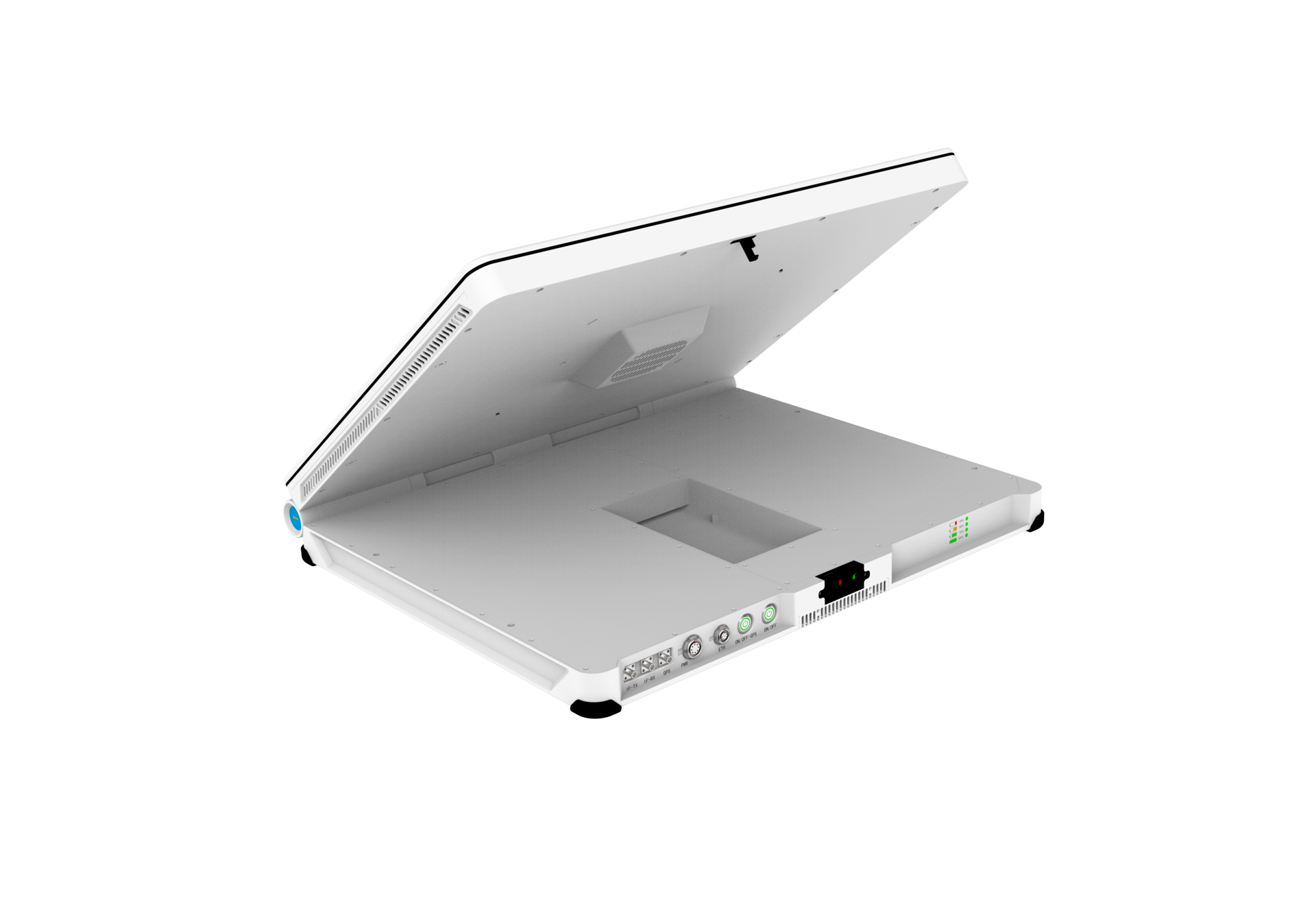

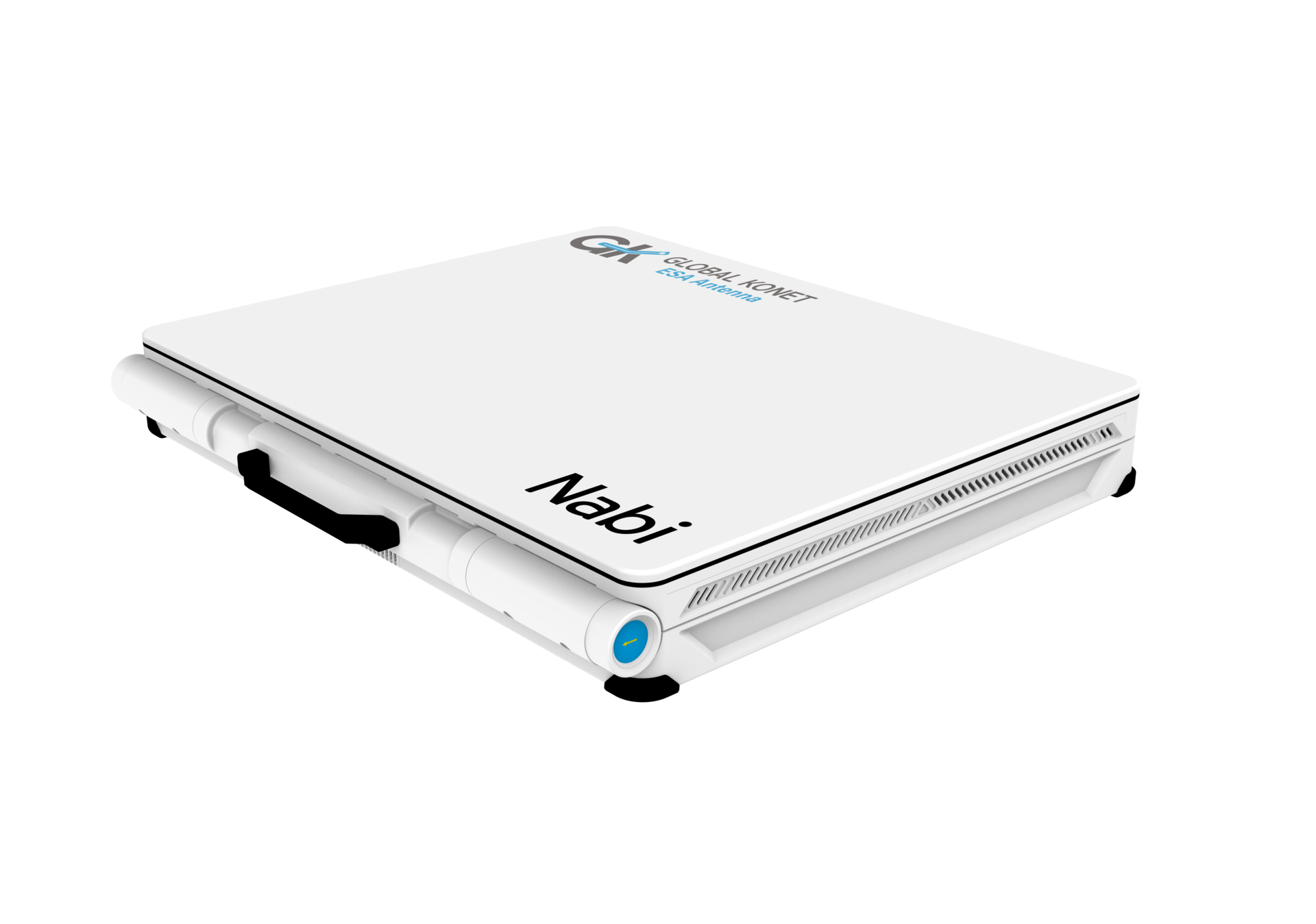

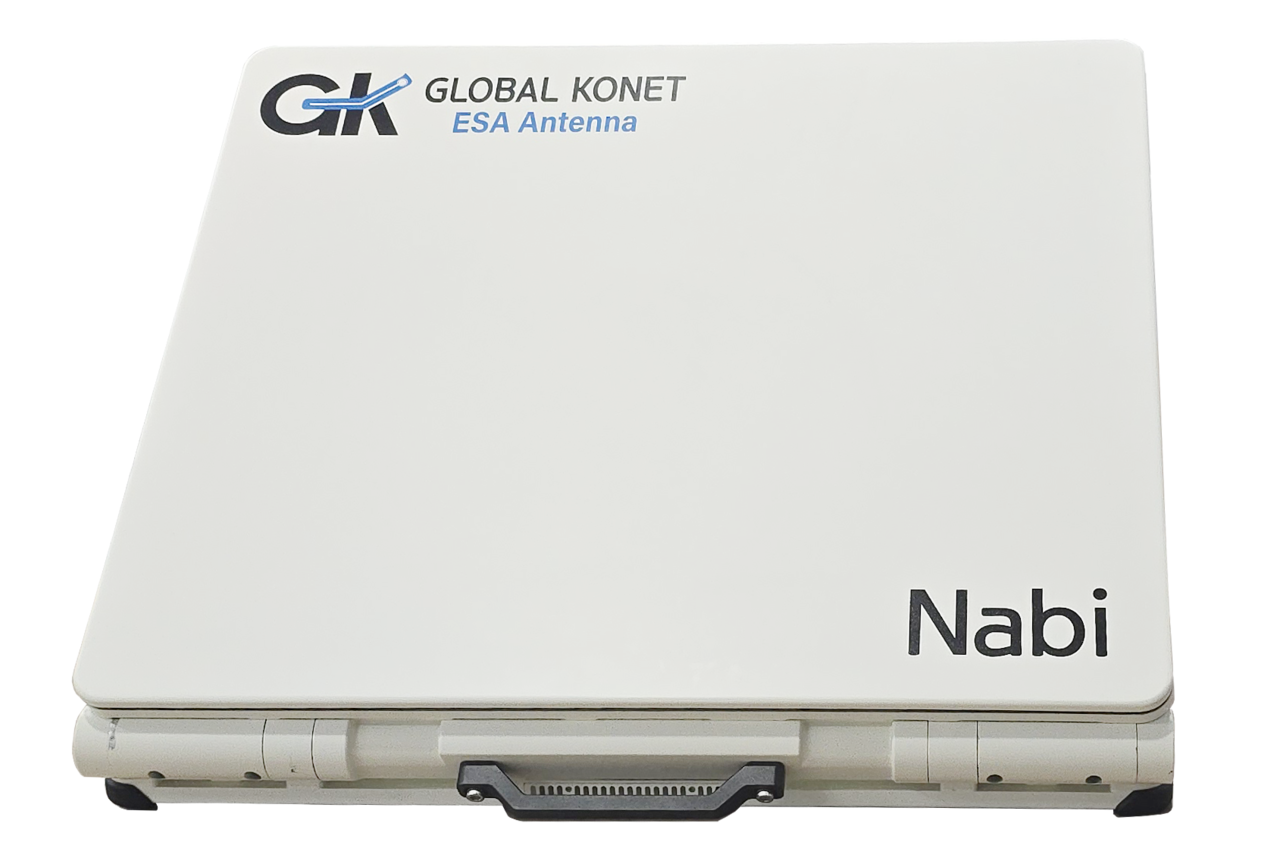

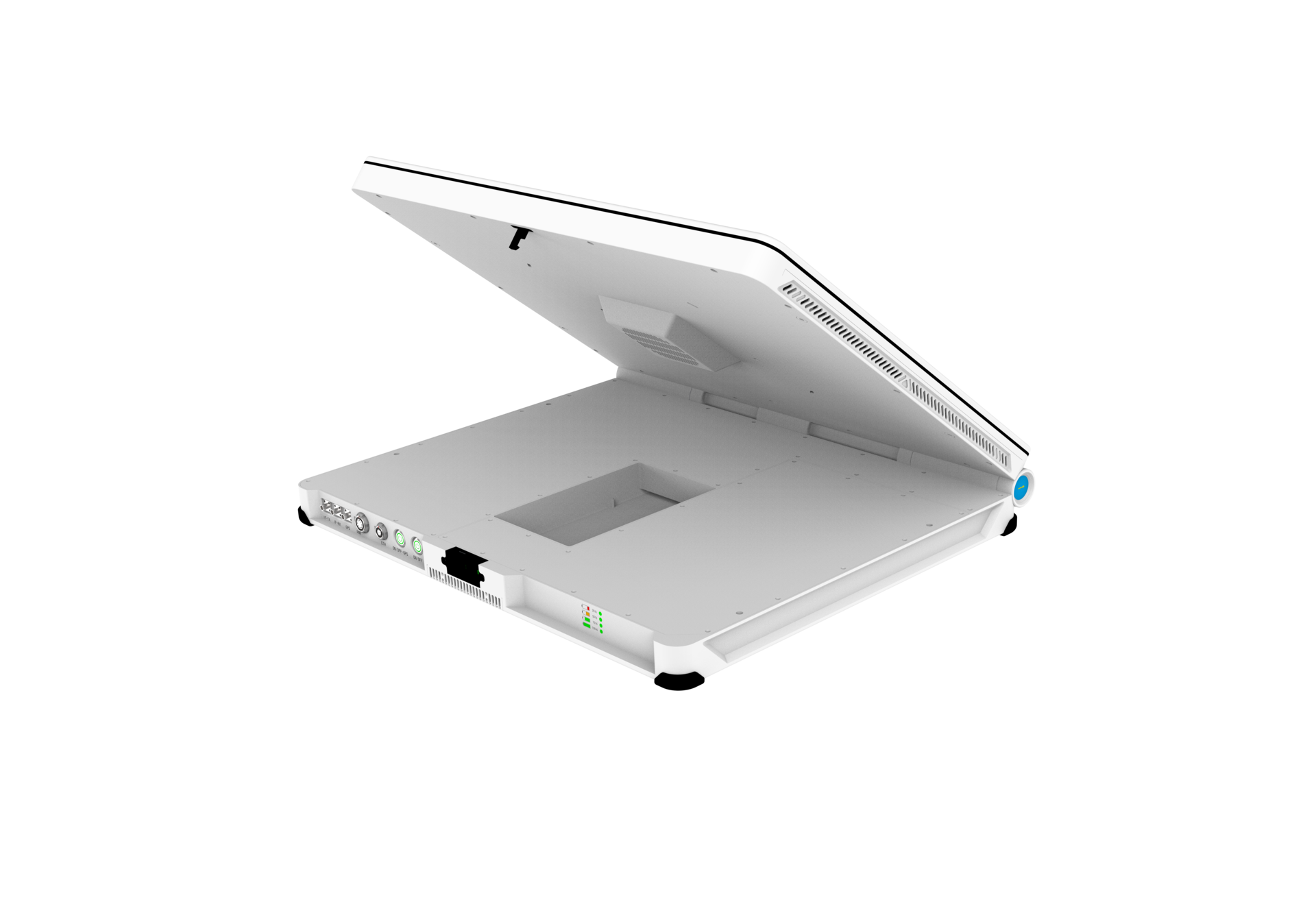

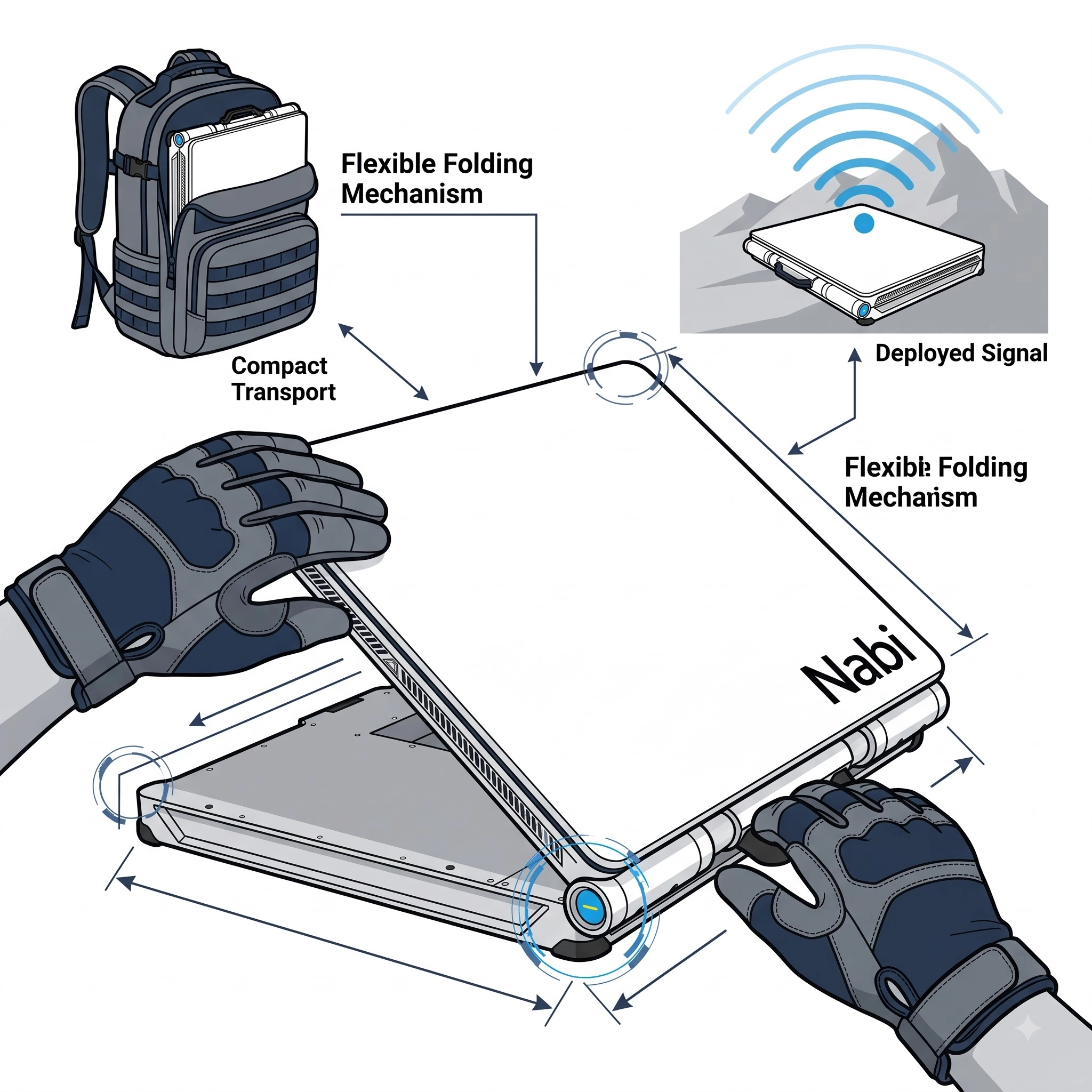

Konet Nabi ESA antenna is a foldable bare-pack antenna in the form of a folder that is suitable for military backpacks


It is an antenna that can transmit large-capacity image information by adjusting the advantage and elevation of the satellite automatic tracking ESA antenna and increasing the antenna gain by lightweight within 18 kg and can be used for more than 2 hours with a built-in battery.

Versatile Mobility for Any Mission


Fast installation on vehicles and vessels for seamless on-the-move operations. Can be carried as a Manpack to deliver connectivity in mountains, deserts, and remote terrain. A single portable terminal providing reliable satellite communication anywhere.

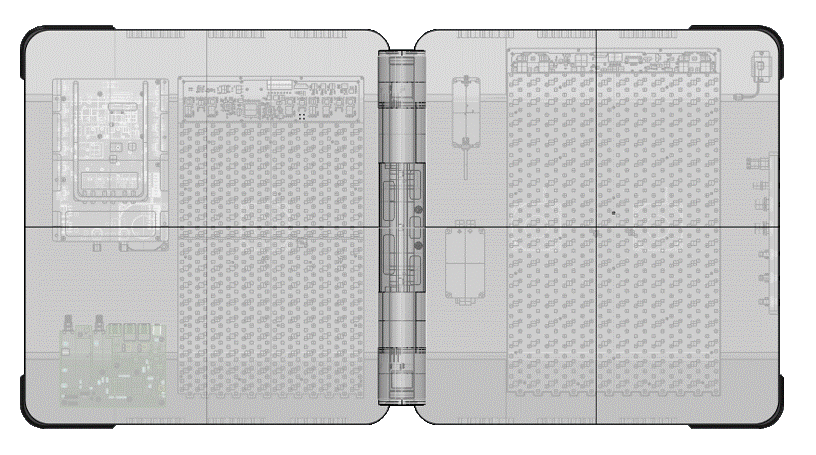

One BOX Terminal Solution


A modem board built-in and IMU, GPS can be integrated the antenna. The modem communicate through OpenAMIP, Fully automated service operation.


Military Products


This equipment is certified to MIL-STD-810G and carries an IP66 waterproof rating. Its operating temperature range is -40 °C  to +60 °C, but prolonged exposure to high heat may cause battery degradation.

Battery built-in


Battery pack is Cylindrical Li-ion Battery and Nominal Capacity 20 Ah, Nominal Voltage 25.2 V. It can operate on AC power when the battery is not available, and the battery pack can be easily replaced.


RELATED RESOURCES

KONET PRODUCTS

VIDEOS

MiNi ESA Antenna Field Test

Global Konet MiNi flat-panel ESA antenna drone simulation test

GK ESA Antenna high performance on Yacht & Vehicle

Coast Guard Live YouTube Satellite Streaming During High-Speed U-Turn - COTM

Coast Guard live YouTube via Alpha2 during U-turn

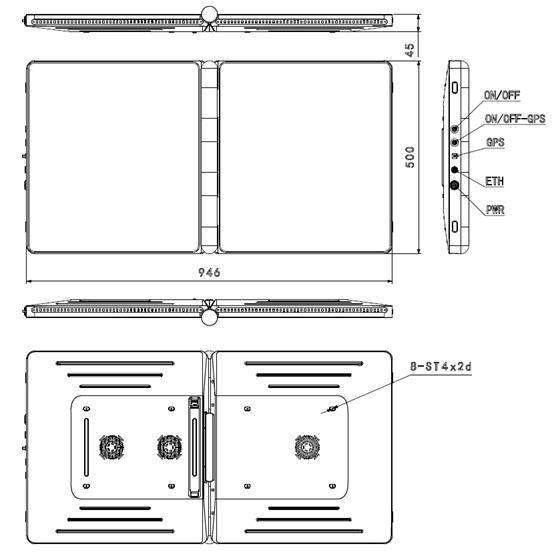

Antenna Spec

•  Model Name : KONET Nabi (GU330) / GU330M (Military)

•  Antenna Type : Vehicle, Marine Vessel, Portable, Manpack

•  Frequency : TX: 13.7–14.5 GHz, RX: 10.7–12.75 GHz

•  Scanning Range : Azimuth: 0º–360º

                                   Elevation: 0º–90º

•  Local Oscillator Frequency : TX: 12.8 / 13.05 GHz

                                                RX: 9.75 / 10.6 / 11.3 GHz

•  10 MHz Reference : TX port requires 10MHz.

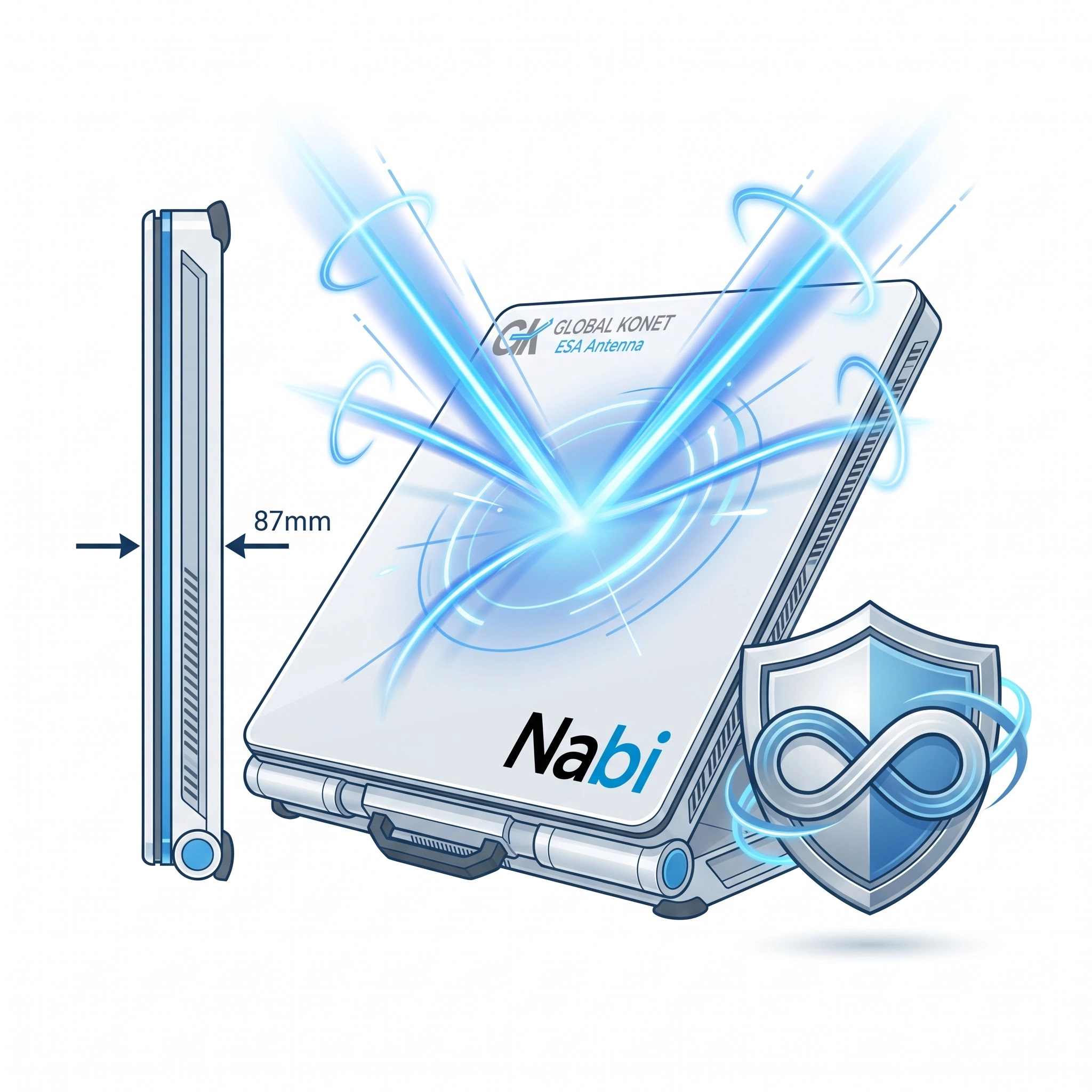

•  Size (W x D x H) : 546 mm ×  613 mm ×  87 mm

•  Weight : ≤ 18 kg

Ant Transmit/Receive Performance

•  EIRP (Typical) : Linear : ≥ 44.2 dBW @ 90° @ 14.1 GHz

•  G/T (Typical) : ≥10.1dB/K @90° @11.7 GHz @40K

•  Polarization : Linear H/V, Circular LHCP/RHCP

•  Cross Polarization : ≤ -30dB

•  First Side Lobe : ≤ -15dB

•  Beacon Tracking Receiver : DVB-S2/Power Detection

•  Satellite Tracking : OTM mode, OpenAMIP mode, Manual mode

•  Modem(OpenAMIP) : Built-in modem(iDirect, Gilat, Comtech, THISS)

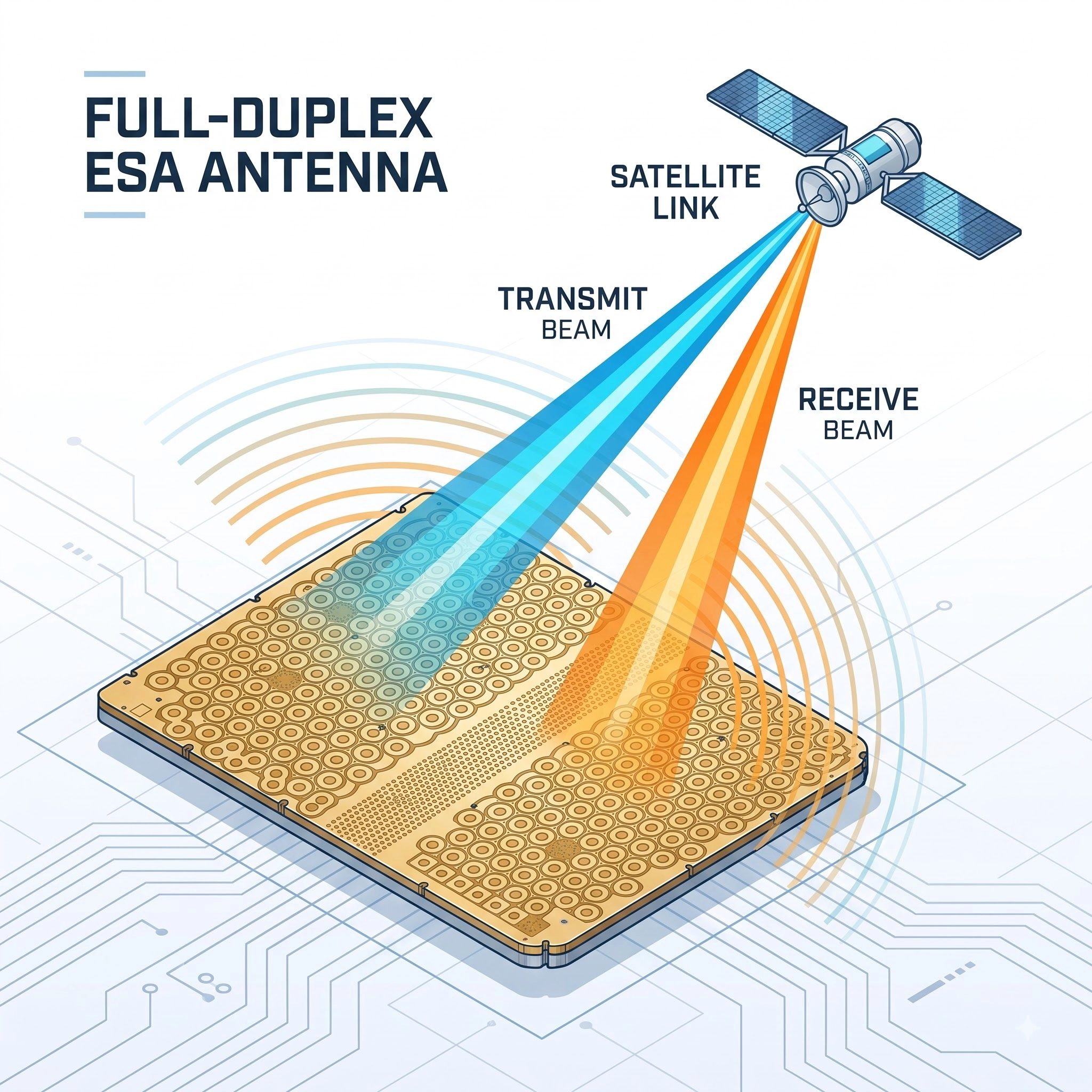

•  Communication Mode : Full Duplex

Interface Features

•  Interface Ports : Power port, Lan Port, RF SMA port

•  ACU Interface : Ethernet RJ45, WiFi (Option)

•  Communication Interface : TCP/IP, WiFi(Option)

•  Built-in modem : YES


Power Supply Requirement

•  Rated Voltage : 24 V

•  Power Consumption : ≤ 300 Watt (Peak)

•  Battery : Li-NiCoMnO₂ battery(NCM)

Ant environmental performance

•  Pol Switching Time  : ≤ 0.3ms

•  Tracking Speed : 110°/sec

•  Tracking Accuracy : 0.2°

•  Operating Temp : -40 ºC – +60 ºC

•  Storage Temp : -55ºC ~ +70ºC

•  Water-proof : IP66

•  Military Standard : MIL-STD-810G, MIL-STD-461G
