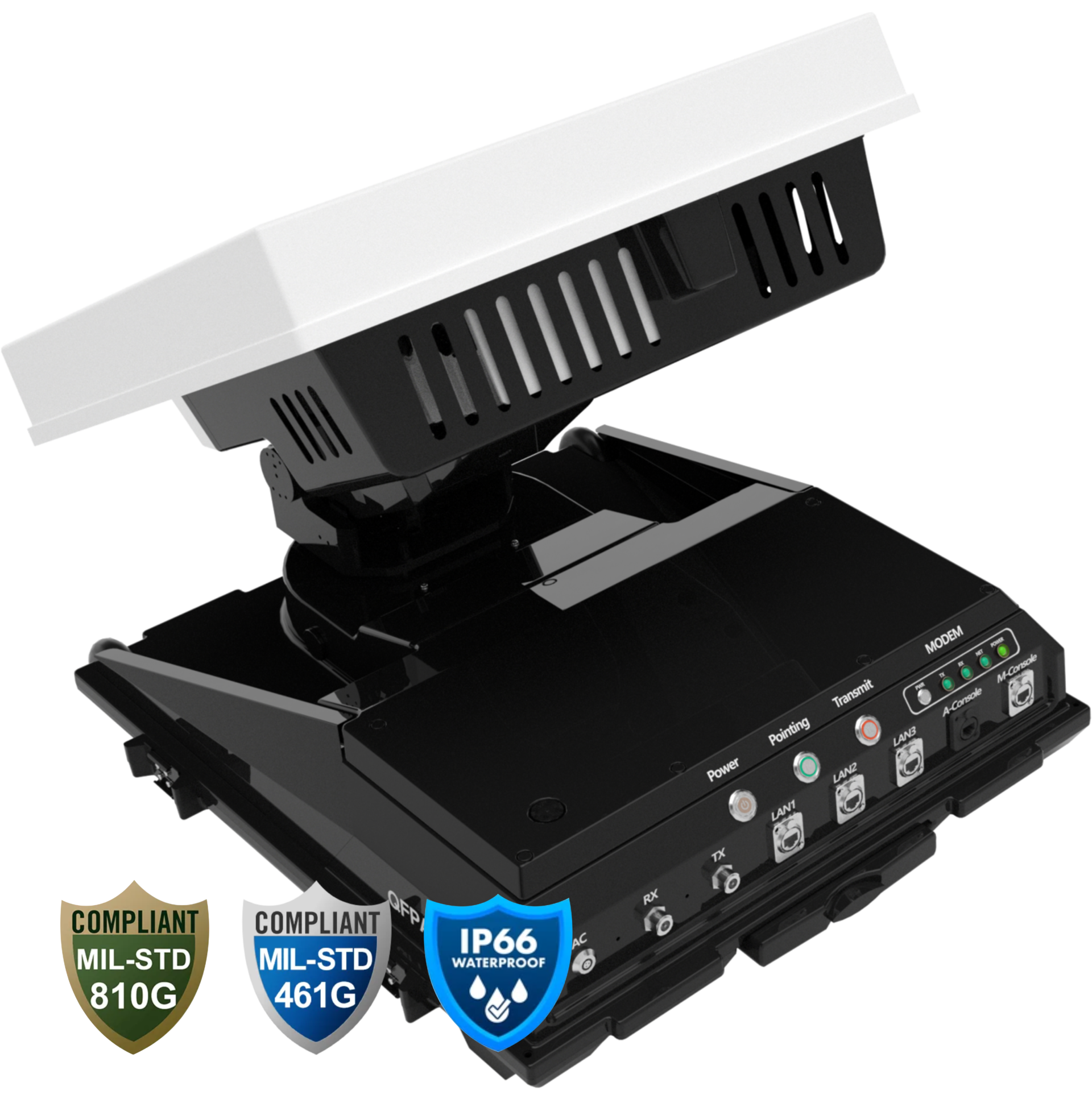

Ku-band high power horn array antenna

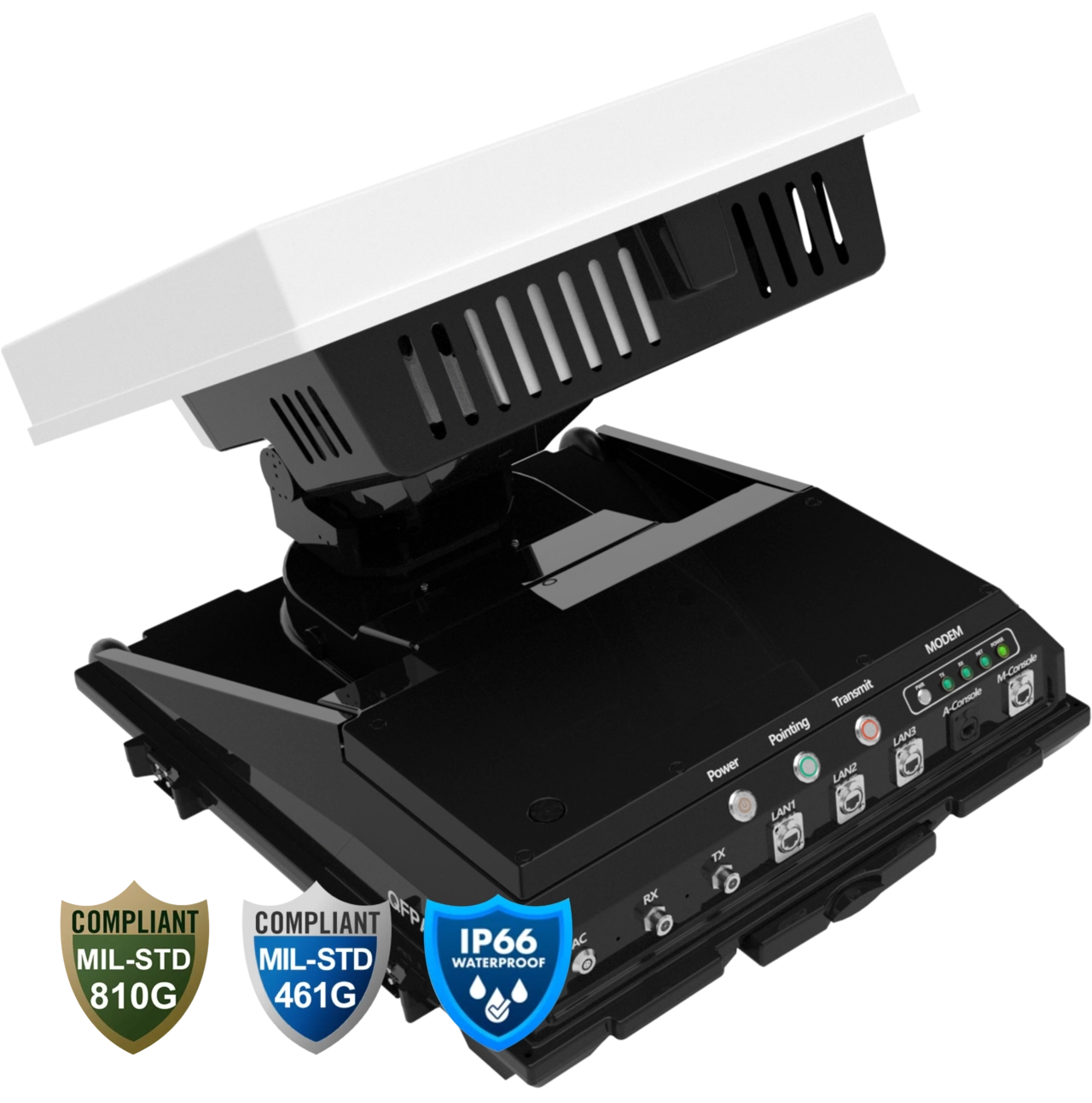

The QFPA50 flat panel antenna is a man-pack antenna with complete and reliable service.


It is lightweight and can be moved in a backpack or carrier, and it has built-in batteries to communicate freely. Many customers use QFPA50 antennas for emergency communication.

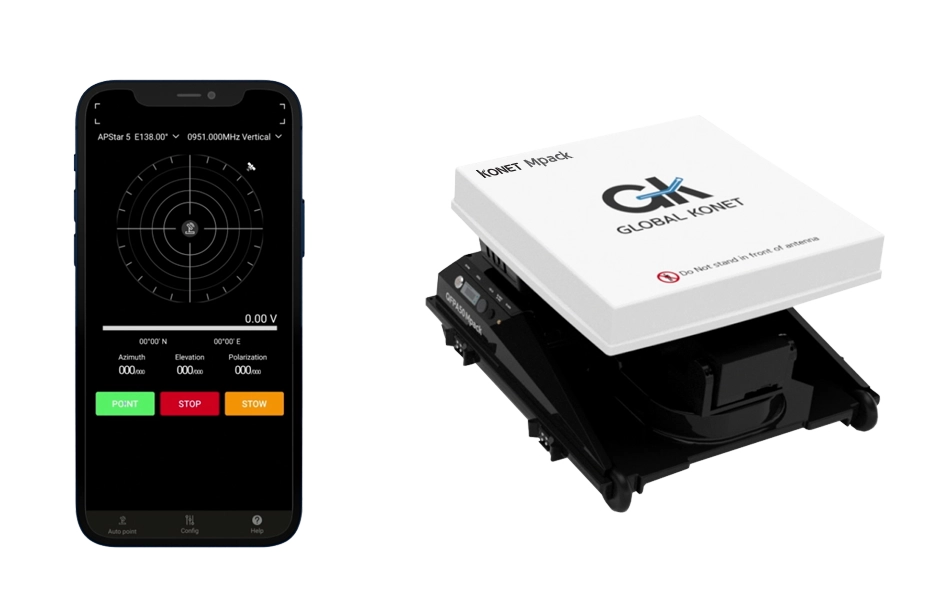

One button pointing is

possible with flat antenna

The QFPA50 is a flat panel antenna that can be moved to a bare pack or vehicle and deployed and used in the field, and can be used as a one-click pointing.

The antenna of low height and small size allows convenient.

Excellent communication network

connectivity for on-the-go communication

With the advancement of 5G communication networks, customers want to provide communication networks anytime, anywhere. Manpac antennas boast free communication network connections for backup communication to vehicles or ships.

3 minutes of service

via one button pointing

The QFPA50-S antenna can provide service within three minutes through one-click pointing, and can provide a hotspot zone by providing a Wi-Fi communication network.

The QFPA50 flat panel antenna is a man-pack antenna with complete and reliable service.


It is lightweight and can be moved in a backpack or carrier, and it has built-in batteries to communicate freely. Many customers use QFPA50 antennas for emergency communication.

One button pointing is

possible with flat antenna


The QFPA50 is a flat panel antenna that can be moved to a bare pack or vehicle and deployed and used in the field, and can be used as a one-click pointing.

The antenna of low height and small size allows convenient.

Excellent communication network

connectivity for on-the-go communication


With the advancement of 5G communication networks, customers want to provide communication networks anytime, anywhere. Manpac antennas boast free communication network connections for backup communication to vehicles or ships.

3 minutes of service

via one button pointing


The QFPA50-S antenna can provide service within three minutes through one-click pointing, and can provide a hotspot zone by providing a Wi-Fi communication network.

RELATED RESOURCES

KONET PRODUCTS

VIDEOS

KONET QFPA50

KONET QFPA50 Unlimited

MiNi ESA Antenna Field Test

Global Konet MiNi flat-panel ESA antenna drone simulation test

iDirect IQ200 and GK ESA Integration Procedure

Alpha2 Jumbo ESA shows stable GEO COTM – Koreasat 5A

Coast Guard live YouTube via Alpha2 during U-turn

Basic information

•  Model : QFPA50

•  Satellite Band : GEO Ku Band

•  Frequency Range : TX: 10.95–12.75 GHz

                                      RX: 13.75–14.5 GHz

Performance Value

•  G/T : ≥ 12.2 dB/Ki @ 12.5 GHz

•  Side Load : ≤ 15 dB

•  STOP Method : Static Beam Scan

Beam Scanning

•  Scanning Range : Azimuth : ± 90° , Elevation 0°– 90°

•  Polarization : Linear Polarization

•  Cross Polarization : ≥ 30 dB axial direction

•  Tracking Speed : 30°/s

•  Tracking Accuracy : ≤ 0.2°

Operating Value

•  Initial dynamic satellite acquisition : ≤ 3 min

•  Rated Voltage : 9–40 V

•  Weight : ≤ 38 kg

•  Dimensions : 720 mm × 650 mm × 450 mm

•  Operation Temperature : -40 ℃ – +55 ℃

RELATED RESOURCES

RELATED

PRODUCTS

VIDEO

KONET QFPA50

KONET QFPA50 Unlimited

MiNi ESA Antenna Field Test

Global Konet MiNi flat-panel ESA antenna drone simulation test

iDirect IQ200 and GK ESA Integration Procedure

Alpha2 Jumbo ESA shows stable GEO COTM – Koreasat 5A

Coast Guard live YouTube via Alpha2 during U-turn

Related Solutions

Portable

Antenna Frequency Spec

Ant Transmit/Receive Performance


•  Model : QFPA50

•  Antenna Type : Horn Array Man Pack Satellite Antenna

•  Satellite Band : GEO Ku Band

•  Frequency Range : RX: 10.95–12.75 GHz, TX: 13.75–14.5 GHz

•  Angle Range :  Azimuth：±90 ˚, Elevation : 30˚–90 ˚,

                              Polarization : ±90 ˚

•  Gain : RX: 35.52 dBi @ 12.5 GHz / TX: 37.61 dBi @ 14.25

•  Size (W x D x H) : 720 mm × 650 mm × 450 mm

•  Panel Size : 600 mm × 600 mm

•  Weight : ≤ 38 Kg

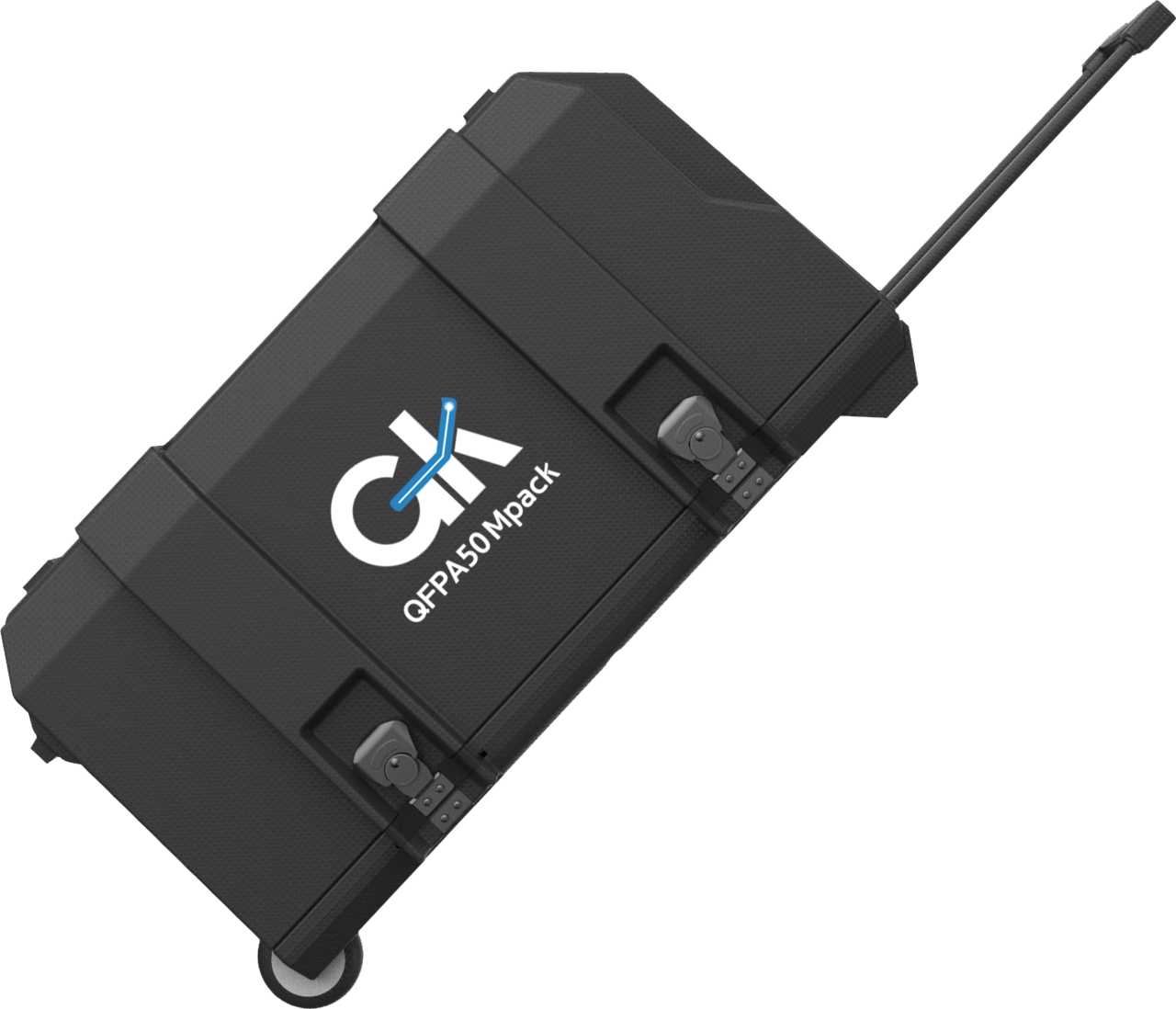

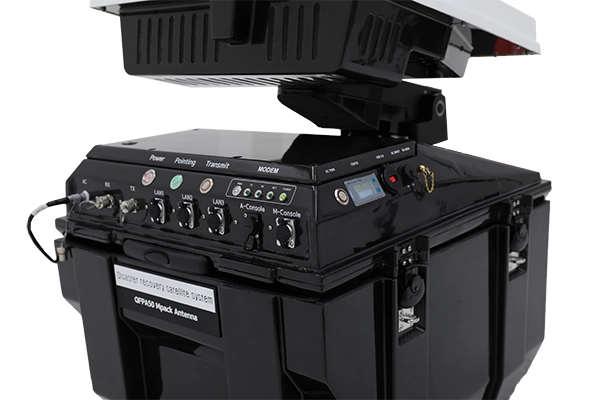

•  Carry Box : ONE BOX
